GLC 3km Long Distance 30a Relay Rf Remote Control Switch 24v Wireless Switch Receiver Dc12v Wireless Remote Switch With Feedback
GLC 3km Long Distance 30a Relay Rf Remote Control Switch 24v Wireless Switch Receiver Dc12v Wireless Remote Switch With Feedback
Regular price
Rs.2,799.00 PKR
Regular price
Rs.3,999.00 PKR
Sale price
Rs.2,799.00 PKR
Unit price
per
Couldn't load pickup availability
Learn Matching Instructions
Introduction to the working mode
Self-locking mode: with a key control, press once open, then press once off, called self-locking. Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking. Manual function : without remote control, press the learn button on the receiver, press it once to turn it on, and then press it again to turn it off.

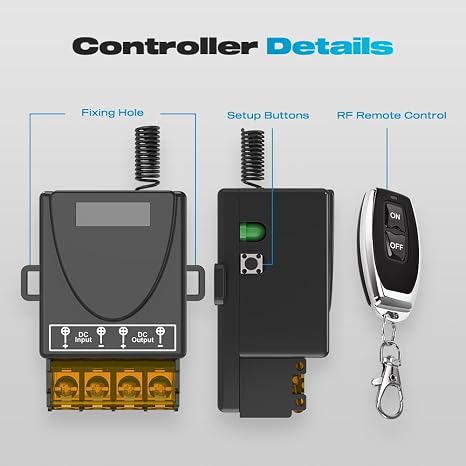

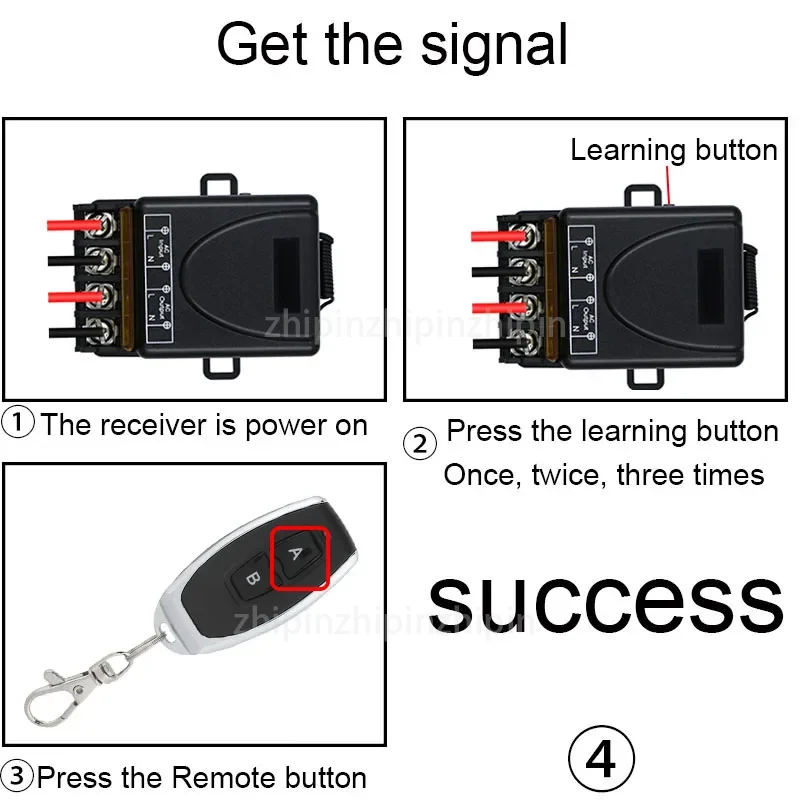

Learning methods
Self-locking: when the receiver is powered on, press and hold the learning button for 3 seconds, and the indicator flashes once.Release your hand and press the remote control button, and the indicator flashes 3 times, indicating that the pairing is successful. Interlocking: when the receiver is powered on, hold down the learning button and wait for 5 seconds, and the indicator light flashes twice. Release your hand, press the ON button of the remote controller, and the indicator light will be on after blinking for 3 times. Then press the OFF button of the remote controller, and the indicator light will blink for 2 times, indicating that the pairing is successful. Clearing code: the receiver is powered on, press and hold the learning button for 8 seconds, and the indicator light flashes for 4 times, indicating that clearing code is successful. Manual：no remote control is needed, and the learning button on the controller can control the opening and closing of the output; press it once to turn it on, and then press it again to turn it off.
